Dropside Trailer for sale
Sidewall Semi Trailer is popular with logistics companies because of its multifunctional use. It is used to load a variety of products and materials, such as sand, fruits and vegetables, steel coils and other bulk goods, and is very widely used in the transportation industry.
● High-strength material beam, light weight and high strength;
● Waterproof side beam, safer cargo transportation;
● Optional pneumatic water spray system, reserved water tank installation space;
● Professional design, standard configuration, stable process, quality assurance;
● Multiple choices of box structure shapes to meet different needs.

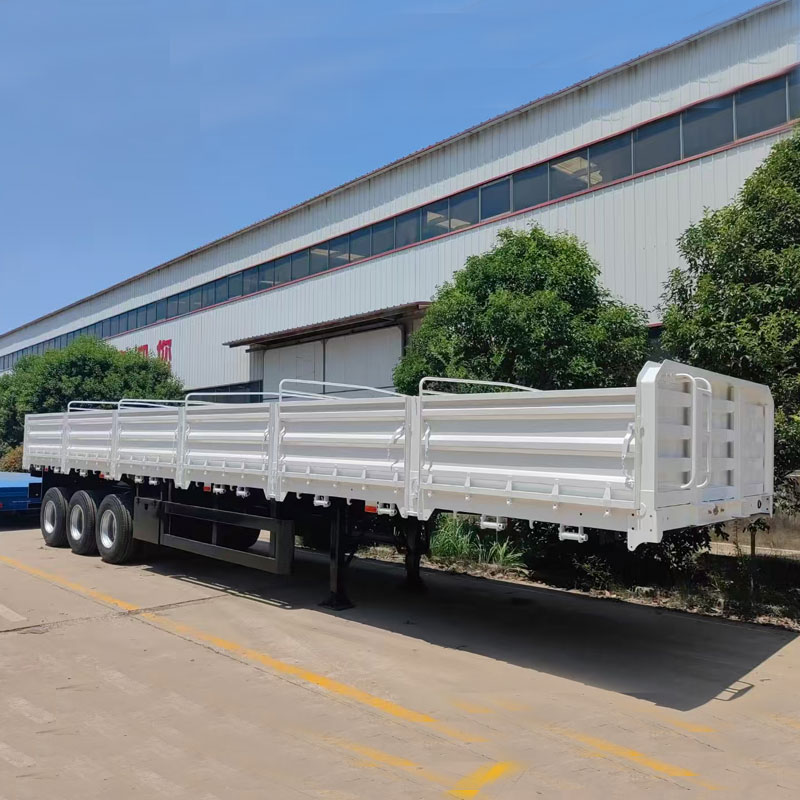

Sidewall Semi Trailer
Specification of Tri Axle Sidewall Semi Trailer |
|
| Name | Tri Axle Sidewall Semi Trailer |
| Tare Weight | About 7.6T |
| Dimension(mm) | 12500x2800x3260mm |
| Trailer Sides | 1250mm |
| Loading capacity(ton): | ≤60T,Load bearing capacity can be customized |
| Axles | 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand |
| Tire: | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension, Optional air suspension |
| Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm |
| Material | Q345B steel |
| Side Beam | 16mm or 18mm steel channel (material: Q235 steel) |
| Bottom Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) |
| Valve | WABCO valve (specially intended for overseas markets) |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Voltage | 24V |
| Others | Optional outer span columns, transverse corrugated box panels, and gooseneck structures are also available. |
Feel free to leave your inquiry!
We will provide a quotation and more details, drawings, pictures, and videos for you!
